New Multidiag pro interface + 2020.23/2018.R0 Multidiag Pro + Bluetooth OBD2 Scanner TCS PRO
DS ACTM V3.0 NEC 9241A WOW Snooper Car Truck Diagnostic Tool
Description of multi diag pro +:
TCS Scanner is a fast and reliable diagnostic tool serving as a link between the vehicle and the computer. It works on both old and new vehicles.
With cars you can perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TRUCKS software, you can perform brand-specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards.
A total of 37 different brands. The generic diagnostic program is designed for regulation-based diagnostics, specifically targeted for emissions-related fault codes. Generic is included in car and truck packages.
Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, input analog, 5 volt output).
With this multidiag pro + interface you can:
1) read and clear error codes;
2) read live data;
3) basic parameters;
4) scan function;
5) Fully compliant with eOBD/OBDII standard.
Multidiag pro + features:
Manufacturing specific serial diagnostics;
Scan function;
EOBD/OBDII communication;
Serial systems;
Engine;
Ignition;
ABS;
Service Reset;
SRS;
Immobilizer;
Instrument;
Comfort system;
Gearbox, etc.
Features of TCS MULTIDIAG PRO+:
FLIGHT RECORDER
With the flight recorder function, you can record real-time parameters while driving a vehicle. While recording, you can, with the press of a button, highlight the specific error so that you can study the detected error later. Tcs is equipped with built-in memory eliminating the need to bring a computer. The memory cart is not included in the package.
VOLTAGE CONTROL
When the TCS is connected to the vehicle, the unit checks the vehicle's battery voltage and automatically adjusts to the vehicle's voltage level of 12 or 24 volts. If the voltage becomes too high or too low, TCS will warn you with sound and light and you will also be alerted via the battery icon in our diagnostic software.
CHASSIS VIN NUMBER
In our car software, we have a smart function that allows you to read the chassis number of the vehicle you want to diagnose. This ensures that the correct model and year are selected automatically. Additionally, the engine code for vehicles, which are commonly available in the markets, is also selected automatically.
The ISS
The Intelligent Scan (ISS) system scans all vehicle systems and displays error codes that are stored in each system. This saves time and you get a quick overview of the actual condition of the entire vehicle. When the ISS is completed, you can then select a specific control system to analyze the results further.
The ISI
Intelligent System Identification (ISI) automatically identifies and selects the type of controller fitted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct settings as needed.
List of Vehicles supported by TCS MultiDiag pro+
Types 2,3,4,5,6,7 include the same board, just a different shell.
Types 2,3,4,5,6,7 are the best quality dual card on the market
With V3.0 board + new NEC relays + real 9241A chip
(Real 9241 chip can support 1998 to 2003 old cars and work more stable)
Type 1 is with V9.0 card and NEC relay:
Attention:
1. CD SW version is V2016/ wow 5.00.8, no need us to activate it.
If you want V2017.R3 with Keygen / V2018.R0 without Keygen, please contact us for download link. For version 2018.R0, you need to send us a file for activation.
2. Before downloading or installing the 2016.R0/2017.R3 software,
-Turn off your internet connection!
-Stop antivirus software!
-Delete all files from old version!
The latest 2018.R0 — highlights:
1. Add cars up to 2018, also add more vehicle models than 2017.R3
2. The only Internet version can be connected or disconnected
3. Need to send us file for activation

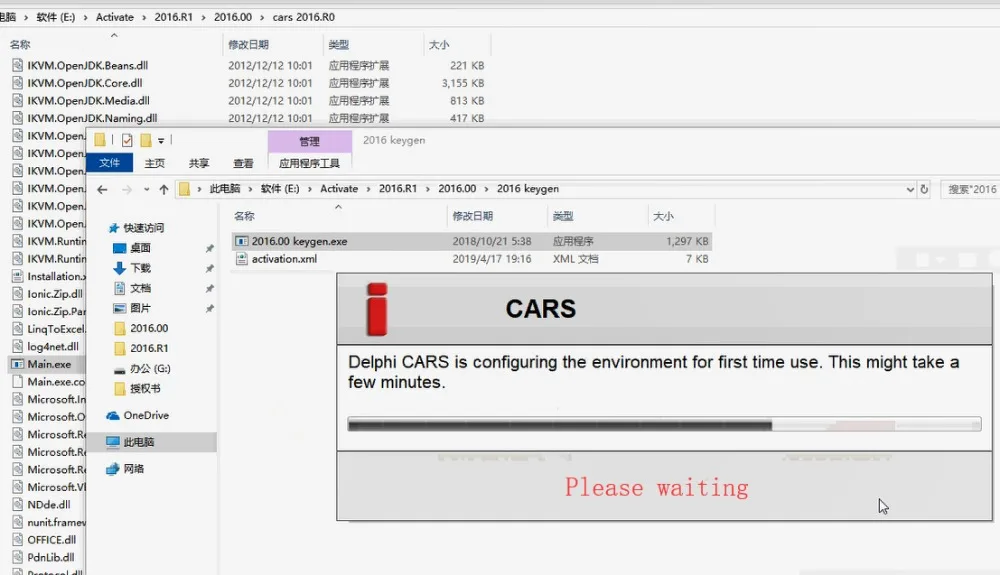

2017.R3 with Keygen — highlights:
1.Add more car before 2017 years
2. With keygen, you can activate it yourself easily on different PCs, no need to wait for the seller to activate it.
3. Story Update
4. Fixes Rev.3 vFiNaL:
It's a complete solution! Now ISS works for all cars!!!
The history function works fully.
Full support for new TCS with serial number 100251 and old TCS units with serial number 30250 etc., now all new cars are visible and available for old TCS units too!!!
Specifications:
1. Supported OS: Win XP / WIN7 32BIT / WIN10 32BIT (does not support 64bit)
